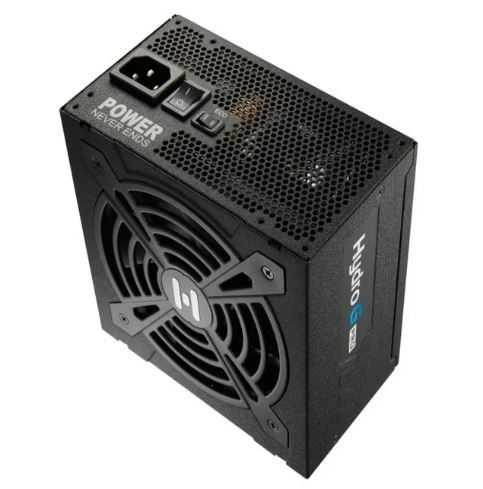

Fsp Hydro G Pro Atx3.0(Pcie5.0) 1000W Psu

FEATURES:

Fully Modular Cable System

80 PLUS Gold Certification

Complies with ATX12V V3.0 &EPS12V V2.92

Efficiency ≧ 90% at typical load

Eco semi-fanless fan control switch

Quiet and long-lasting 120mm FDB fan

Ribbon cable design for enthusiasts

+12V single-rail design

+5V & 3.3V DC to DC module design

Japanese electrolytic capacitors

Changeable side stickers for DIY enthusiasts and gamers

Complete protection: OCP, OVP, SCP, OPP, OTP, UVP

SPECIFICATIONS:

Type: ATX

PFC: Active PFC

Input Voltage: 100V-240V

Input Current: 16-6A

Input Frequency: 50-60Hz

Output Capacity: 1000W

Max. Output Power: 1000W

Fan Type: 120mm FDB Fan

Efficiency: 90%

MTBF: 100, 000 Hrs

Protection: OCP, OVP, OPP, SCP, OTP, UVP

Total Power: 850W

DC Output/Max Output Current/Max Combined Power:

+3.3V/20A/120W

+5V/20A/120W

+12V/83.33A/1000W

-12V/0.3A/3.6W

+5Vsb/2.5A/12.5W

Cable Connections:

ATX 20+4 x 1

4+4 PIN x 2

PCI-E 6+2 x 6

SATA x 14

Molex (PERIPHERAL) x 5

Floppy x 1

Product Dimensions: 15 x 15 x 8.6 cm

WHAT`S IN THE BOX:

FSP Hydro G PRO 1000W 80 PLUS Gold PCIe 5.0 ATX3.0 Power Supply x1

Product/Packaging Information

Product Weight

21 kg

Product Dimensions

40cm(L) x 38cm(W) x 16cm(H)

Shipping Weight

21 kg

Shipping Dimensions

40cm(L) x 38cm(W) x 16cm(H)
